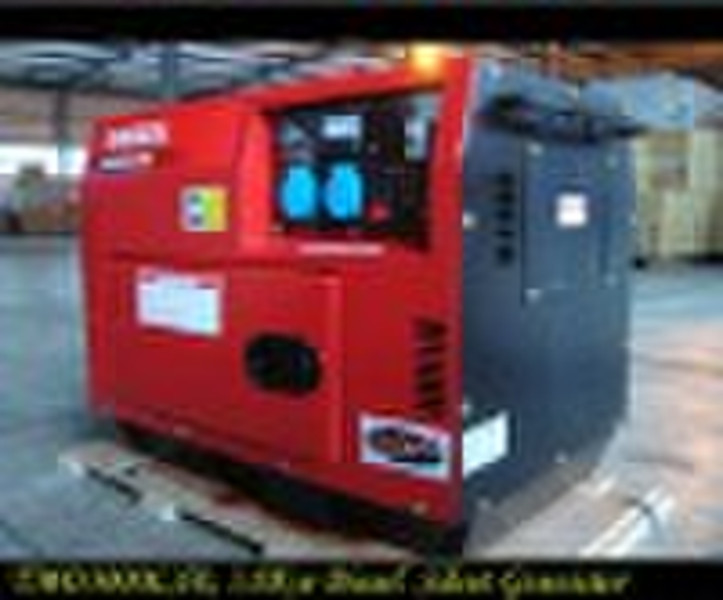

3.0Kw Silent Diesel Generator
Colin Jing
Contact person
Basic Information
| Output Type | AC Single Phase |
|---|---|
| Place of Origin | Zhejiang China (Mainland) |
| Brand Name | Toolmax |
| Model Number | TMD3000LXB |
| Frequency | 50/60 |
| Rated Power | 3.0Kw |
| Rated Voltage | 110 |
| Rated Current | 8.3A |
Specifications: Frequency(Hz):50/60 Max.AC output(KVA):3.3/3.5 Rated AC output(KVA):2.8/3.3 Rated AC Voltage(V): 110,220,230,240,110/220V,120/240V Power Factor(cosφ) 1.0 Type: Brushless,self-excitation,2-poles,Single-phase Voltage Regulator: Condenser Type DC Output: 12V/8.3A(option) Engine Model:DH178FDE Type:Forced air-cooled,4-stroke,Diesel Engine Displacement(cc): 296 Max.Output(Hp/rpm): 6.0/3600 Fuel: Diesel Light Fuel Fuel Tank capacity(L): 16 Continuous Operating Hours(H):12.0/11.0 Oil: SAE 10W30(Above CC grade) Oil capacity(L): 1.1 Ignition System: Direct injection Starting System :Electric start Operating Noise Level(7m)db(A):69/70 Net Dimension LXWXH(mm): 810x520x680 Overall Dimension LXWXH(mm): 950x565x770 N.W./G.W.(kg):131/141 20GP/40GP/40HQ: 48/96/144
Delivery terms and packaging
Packaging Detail: standard export carton Delivery Detail: 15 days
Port: Ningbo or Shanghai
